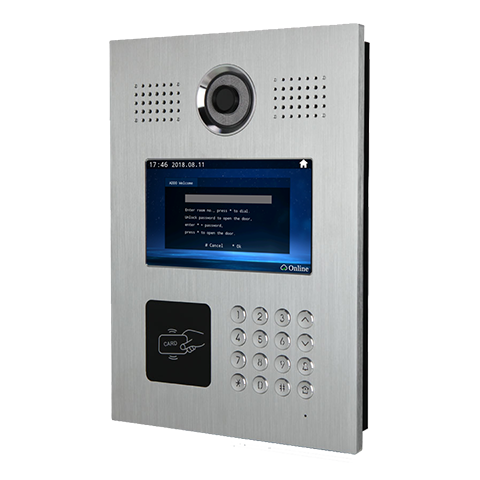

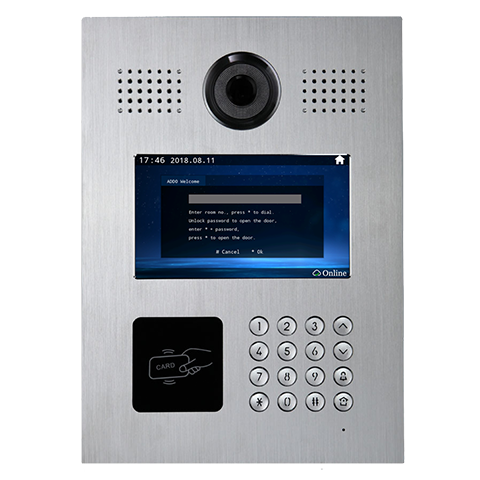

7 inch outdoor phone, numeric keypad

7 inch outdoor phone, numeric keypad


  • Power supply: DC12V 1A / POE 24V
  • Power Consumption: working: 300mA, standby: 100mA
  • Flush mounted type
  • 7 color high-brightness LCD, no touch panel
  • 720P HD camera, night view;
  • Screen definition: 800x480 pixel
  • Mechanical numeric keypad & GUI menu
  • Interface: RJ45 jack, dry contact for unlock
  • Wiring: LAN(CAT.5e)
  • Protocol: TCP/IP, SIP2.0
  • Video: H264 VGA
  • Dimension: L330*W230*H47mm
  • Operating Temperature: 0-55°C


  1. Aluminium housing with numeric keypad;
  2. 7 inch screen for Ad playback or notification;
  3. Based on TCP/IP Ethernet network, CAT5 wiring, easy installation;
  4. Support SIP2.0 protocol (server mood / p2p mood);
  5. Android / IOS app available for remote intercom with server support;
  6. DC-12V /  POE24V, easy wiring;
  7. ID card remote management and access control;
  8. Password unlock support;
  9. Support RTSP for IP camera monitoring or external IP camera streaming;
  10. Multiple methods for system configuration: web-server, control server, local menu;
  11. Central Control server: Remote System configuration, Video intercom log, Alarm dealing and log, Community notification distribution
  12. Intercom Function:Call mobile app while no answer on indoor phone.
